14. Fault Tree Uncertainties#

14.1. Overview#

This lecture puts elementary tools to work to approximate probability distributions of the annual failure rates of a system consisting of a number of critical parts.

We’ll use log normal distributions to approximate probability distributions of critical component parts.

To approximate the probability distribution of the sum of \(n\) lognormal random variables (representing the system’s total failure rate), we compute the convolution of these distributions.

We’ll use the following concepts and tools:

  • lognormal distributions

  • the convolution theorem that describes the probability distribution of the sum of independent random variables

  • fault tree analysis for approximating a failure rate of a multi-component system

  • a hierarchical probability model for describing uncertain probabilities

  • Fourier transforms and inverse Fourier transforms as efficient ways of computing convolutions of sequences

See also

For more on Fourier transforms, see Circulant Matrices as well as Covariance Stationary Processes and Estimation of Spectra.

El-Shanawany et al. [2018] and Greenfield and Sargent [1993] applied these methods to approximate failure probabilities of safety systems in nuclear facilities.

These techniques respond to recommendations by Apostolakis [1990] for quantifying uncertainty in safety system reliability.

We will use the following imports and settings throughout this lecture:

import numpy as np
import matplotlib.pyplot as plt
from scipy.signal import fftconvolve
from tabulate import tabulate
import quantecon as qe

np.set_printoptions(precision=3, suppress=True)

14.2. The lognormal distribution#

If random variable \(x\) follows a normal distribution with mean \(\mu\) and variance \(\sigma^2\), then \(y = \exp(x)\) follows a lognormal distribution with parameters \(\mu, \sigma^2\).

Note

We refer to \(\mu\) and \(\sigma^2\) as parameters rather than mean and variance because:

  • \(\mu\) and \(\sigma^2\) are the mean and variance of \(x = \log(y)\)

  • They are not the mean and variance of \(y\)

  • The mean of \(y\) is \(\exp(\mu + \frac{1}{2}\sigma^2)\) and the variance is \((e^{\sigma^2} - 1) e^{2\mu + \sigma^2}\)

A lognormal random variable \(y\) is always nonnegative.

The probability density function for \(y\) is

(14.1)#\[f(y) = \frac{1}{y \sigma \sqrt{2 \pi}} \exp \left( \frac{- (\log y - \mu)^2 }{2 \sigma^2} \right), \quad y \geq 0\]

Important properties of a lognormal random variable are:

(14.2)#\[\begin{split}\begin{aligned} \text{Mean:} & \quad e ^{\mu + \frac{1}{2} \sigma^2} \\ \text{Variance:} & \quad (e^{\sigma^2} - 1) e^{2 \mu + \sigma^2} \\ \text{Median:} & \quad e^\mu \\ \text{Mode:} & \quad e^{\mu - \sigma^2} \\ \text{0.95 quantile:} & \quad e^{\mu + 1.645 \sigma} \\ \text{0.95/0.05 quantile ratio:} & \quad e^{3.29 \sigma} \end{aligned}\end{split}\]

14.2.1. Stability properties#

Recall that independent normally distributed random variables have the following stability property:

If \(x_1 \sim N(\mu_1, \sigma_1^2)\) and \(x_2 \sim N(\mu_2, \sigma_2^2)\) are independent, then \(x_1 + x_2 \sim N(\mu_1 + \mu_2, \sigma_1^2 + \sigma_2^2)\).

Independent lognormal distributions have a different stability property: the product of independent lognormal random variables is also lognormal.

Specifically, if \(y_1\) is lognormal with parameters \((\mu_1, \sigma_1^2)\) and \(y_2\) is lognormal with parameters \((\mu_2, \sigma_2^2)\), then \(y_1 y_2\) is lognormal with parameters \((\mu_1 + \mu_2, \sigma_1^2 + \sigma_2^2)\).

Warning

While the product of two lognormal distributions is lognormal, the sum of two lognormal distributions is not lognormal.

This observation motivates the central challenge of this lecture: approximating the probability distribution of sums of independent lognormal random variables.

14.3. The convolution theorem#

Let \(x\) and \(y\) be independent random variables with probability densities \(f(x)\) and \(g(y)\), where \(x, y \in \mathbb{R}\).

Let \(z = x + y\).

Then the probability density of \(z\) is

(14.3)#\[h(z) = (f * g)(z) \equiv \int_{-\infty}^\infty f(\tau) g(z - \tau) d\tau\]

where \((f*g)\) denotes the convolution of \(f\) and \(g\).

For nonnegative random variables, this specializes to

(14.4)#\[h(z) = (f * g)(z) \equiv \int_{0}^z f(\tau) g(z - \tau) d\tau\]

14.3.1. Discrete convolution#

We will use a discretized version of the convolution formula.

We replace both \(f\) and \(g\) with discretized counterparts, normalized to sum to 1.

The discrete convolution formula is

(14.5)#\[h_n = (f*g)_n = \sum_{m=0}^n f_m g_{n-m}, \quad n \geq 0\]

This computes the probability mass function of the sum of two discrete random variables.

14.3.2. Example: discrete distributions#

Consider two probability mass functions:

\[ f_j = \Pr(X = j), \quad j = 0, 1 \]

and

\[ g_j = \Pr(Y = j), \quad j = 0, 1, 2, 3 \]

The distribution of \(Z = X + Y\) is given by the convolution \(h = f * g\).

# Define probability mass functions
f = [0.75, 0.25]
g = [0.0, 0.6, 0.0, 0.4]

# Compute convolution using two methods
h = np.convolve(f, g)
hf = fftconvolve(f, g)

print(f"f = {f}, sum = {np.sum(f):.3f}")
print(f"g = {g}, sum = {np.sum(g):.3f}")
print(f"h = {h}, sum = {np.sum(h):.3f}")
print(f"hf = {hf}, sum = {np.sum(hf):.3f}")

f = [0.75, 0.25], sum = 1.000
g = [0.0, 0.6, 0.0, 0.4], sum = 1.000
h = [0.   0.45 0.15 0.3  0.1 ], sum = 1.000
hf = [0.   0.45 0.15 0.3  0.1 ], sum = 1.000

Both numpy.convolve and scipy.signal.fftconvolve produce the same result, but fftconvolve is much faster for long sequences.

We will use fftconvolve throughout this lecture for efficiency.

14.4. Approximating continuous distributions#

We now verify that discretized distributions can accurately approximate samples from underlying continuous distributions.

We generate samples of size 25,000 from three independent lognormal random variables and compute their pairwise and triple-wise sums.

We then compare histograms of the samples with histograms of the discretized distributions.

# Set parameters for lognormal distributions
μ, σ = 5.0, 1.0
n_samples = 25000

# Generate samples
np.random.seed(1234)
s1 = np.random.lognormal(μ, σ, n_samples)
s2 = np.random.lognormal(μ, σ, n_samples)
s3 = np.random.lognormal(μ, σ, n_samples)

# Compute sums
ssum2 = s1 + s2
ssum3 = s1 + s2 + s3

# Plot histogram of s1
fig, ax = plt.subplots()
ax.hist(s1, 1000, density=True, alpha=0.6)
ax.set_xlabel('value')
ax.set_ylabel('density')
plt.show()
_images/7539fd052f1f1742b8afb4c68d10db212edec18ad2b5718d73f109c6a541de67.png

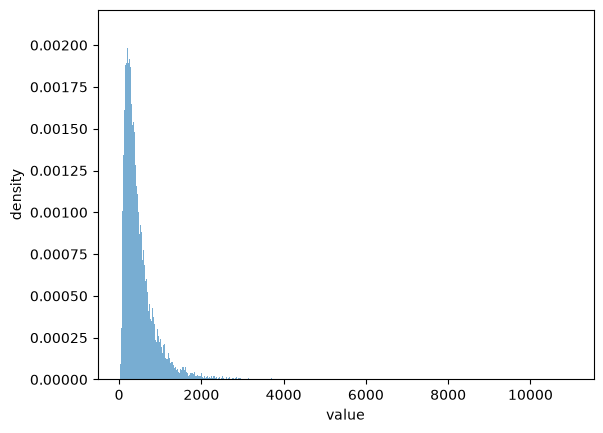

# Plot histogram of sum of two lognormal distributions
fig, ax = plt.subplots()
ax.hist(ssum2, 1000, density=True, alpha=0.6)
ax.set_xlabel('value')
ax.set_ylabel('density')
plt.show()
_images/92936bc2c8d981a0172f1dd544b2a4a9f25c311eccd3f4092048c2f5613f887f.png

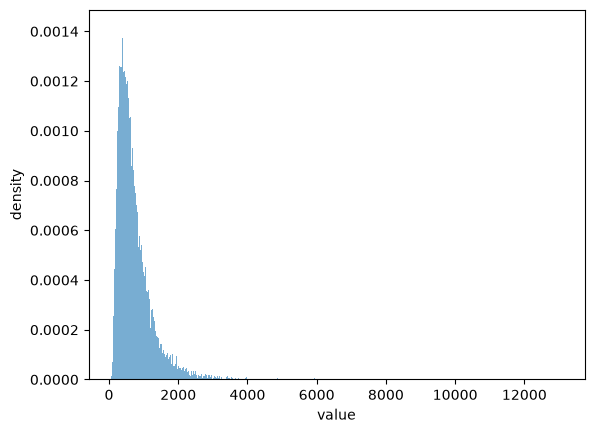

# Plot histogram of sum of three lognormal distributions
fig, ax = plt.subplots()
ax.hist(ssum3, 1000, density=True, alpha=0.6)
ax.set_xlabel('value')
ax.set_ylabel('density')
plt.show()
_images/6749c779ad3f4df51cffed4fedfbe89914588edcf2dcd956c43e17bfdccc9287.png

Let’s verify that the sample mean matches the theoretical mean:

samp_mean = np.mean(s2)
theoretical_mean = np.exp(μ + σ**2 / 2)

print(f"Theoretical mean: {theoretical_mean:.3f}")
print(f"Sample mean: {samp_mean:.3f}")

Theoretical mean: 244.692
Sample mean: 244.420

14.5. Discretizing the lognormal distribution#

We define helper functions to create discretized versions of lognormal probability density functions.

def lognormal_pdf(x, μ, σ):
    """
    Compute lognormal probability density function.
    """
    p = 1 / (σ * x * np.sqrt(2 * np.pi)) \
            * np.exp(-0.5 * ((np.log(x) - μ) / σ)**2)
    return p


def discretize_lognormal(μ, σ, I, m):
    """
    Create discretized lognormal probability mass function.
    """
    x = np.arange(1e-7, I, m)
    p_array = lognormal_pdf(x, μ, σ)
    p_array_norm = p_array / np.sum(p_array)
    return p_array, p_array_norm, x

We set the grid length \(I\) to a power of 2 to enable efficient Fast Fourier Transform computation.

Note

Increasing the power \(p\) (e.g., from 12 to 15) improves the approximation quality but increases computational cost.

# Set grid parameters
p = 15
I = 2**p  # Truncation value (power of 2 for FFT efficiency)
m = 0.1   # Increment size

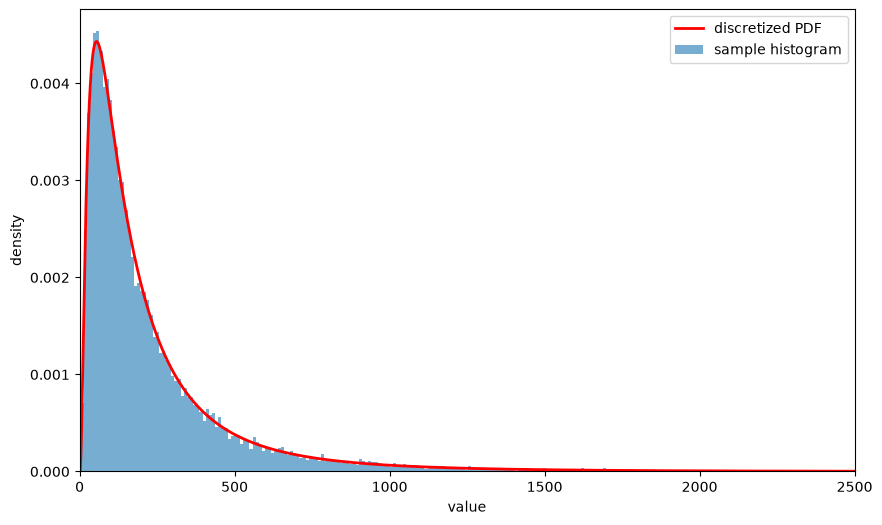

Let’s visualize how well the discretized distribution approximates the continuous lognormal distribution:

# Compute discretized PDF
pdf, pdf_norm, x = discretize_lognormal(μ, σ, I, m)

# Plot discretized PDF against histogram
fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(x, pdf, 'r-', lw=2, label='discretized PDF')
ax.hist(s1, 1000, density=True, alpha=0.6, label='sample histogram')
ax.set_xlim(0, 2500)
ax.set_xlabel('value')
ax.set_ylabel('density')
ax.legend()
plt.show()
_images/3a7031960b91f9a7d802e44a4e4787928485e4495dab667c3cd5eb4be93cde20.png

Now let’s verify that the discretized distribution has the correct mean:

# Compute mean from discretized PDF
mean_discrete = np.sum(x * pdf_norm)
mean_theory = np.exp(μ + 0.5 * σ**2)

print(f"Theoretical mean: {mean_theory:.3f}")
print(f"Discretized mean: {mean_discrete:.3f}")

Theoretical mean: 244.692
Discretized mean: 244.691

14.6. Convolving probability mass functions#

Now let’s use the convolution theorem to compute the probability distribution of a sum of the two lognormal random variables we have parameterized above.

We’ll also compute the probability of a sum of three log normal distributions constructed above.

For long sequences, scipy.signal.fftconvolve is much faster than numpy.convolve because it uses Fast Fourier Transforms.

Let’s define the Fourier transform and the inverse Fourier transform first

14.6.1. The Fast Fourier Transform#

The Fourier transform of a sequence \(\{x_t\}_{t=0}^{T-1}\) is

(14.6)#\[x(\omega_j) = \sum_{t=0}^{T-1} x_t \exp(-i \omega_j t)\]

where \(\omega_j = \frac{2\pi j}{T}\) for \(j = 0, 1, \ldots, T-1\).

The inverse Fourier transform of the sequence \(\{x(\omega_j)\}_{j=0}^{T-1}\) is

(14.7)#\[x_t = T^{-1} \sum_{j=0}^{T-1} x(\omega_j) \exp(i \omega_j t)\]

The sequences \(\{x_t\}_{t=0}^{T-1}\) and \(\{x(\omega_j)\}_{j=0}^{T-1}\) contain the same information.

The pair of equations (14.6) and (14.7) tell how to recover one series from its Fourier partner.

The program scipy.signal.fftconvolve deploys the theorem that a convolution of two sequences \(\{f_k\}, \{g_k\}\) can be computed in the following way:

  • Compute Fourier transforms \(F(\omega), G(\omega)\) of the \(\{f_k\}\) and \(\{g_k\}\) sequences, respectively

  • Form the product \(H (\omega) = F(\omega) G (\omega)\)

  • The convolution of \(f * g\) is the inverse Fourier transform of \(H(\omega)\)

The fast Fourier transform and the associated inverse fast Fourier transform execute these calculations very quickly.

This is the algorithm used by fftconvolve.

Let’s do a warmup calculation that compares the times taken by numpy.convolve and scipy.signal.fftconvolve

# Discretize three lognormal distributions
_, pmf1, x = discretize_lognormal(μ, σ, I, m)
_, pmf2, x = discretize_lognormal(μ, σ, I, m)
_, pmf3, x = discretize_lognormal(μ, σ, I, m)

# Time numpy.convolve
with qe.Timer() as timer_numpy:
    conv_np = np.convolve(pmf1, pmf2)
    conv_np = np.convolve(conv_np, pmf3)
time_numpy = timer_numpy.elapsed

# Time fftconvolve
with qe.Timer() as timer_fft:
    conv_fft = fftconvolve(pmf1, pmf2)
    conv_fft = fftconvolve(conv_fft, pmf3)
time_fft = timer_fft.elapsed

print(f"Time with np.convolve: {time_numpy:.4f} seconds")
print(f"Time with fftconvolve: {time_fft:.4f} seconds")
print(f"Speedup factor: {time_numpy / time_fft:.1f}x")

31.81 seconds elapsed
0.16 seconds elapsed
Time with np.convolve: 31.8143 seconds
Time with fftconvolve: 0.1595 seconds
Speedup factor: 199.5x

The Fast Fourier Transform provides orders of magnitude speedup.

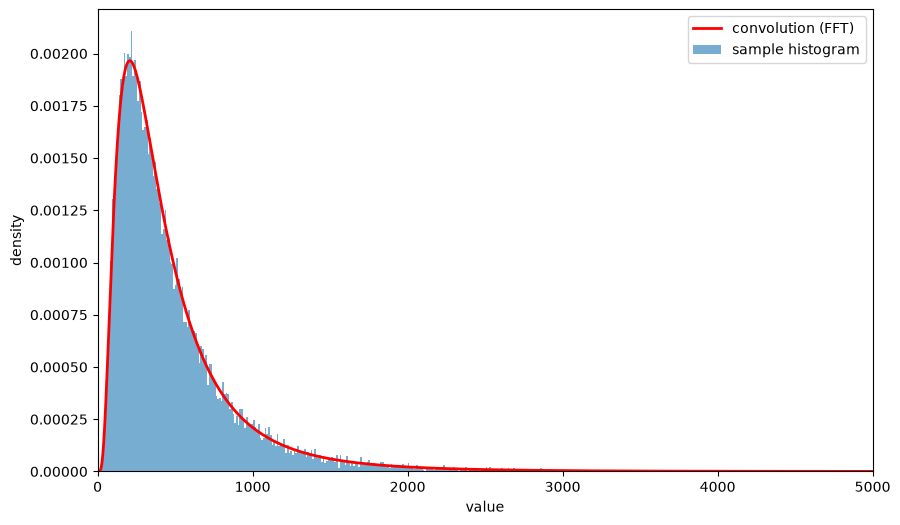

Now let’s plot our computed probability mass function approximation for the sum of two log normal random variables against the histogram of the sample that we formed above

# Compute convolution of two distributions for comparison
conv2 = fftconvolve(pmf1, pmf2)

fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(x, conv2[:len(x)] / m, 'r-', lw=2, label='convolution (FFT)')
ax.hist(ssum2, 1000, density=True, alpha=0.6, label='sample histogram')
ax.set_xlim(0, 5000)
ax.set_xlabel('value')
ax.set_ylabel('density')
ax.legend()
plt.show()
_images/c75011595df6162affc985668edff78cd9a33af821ff7329b1259b401a2fdb53.png

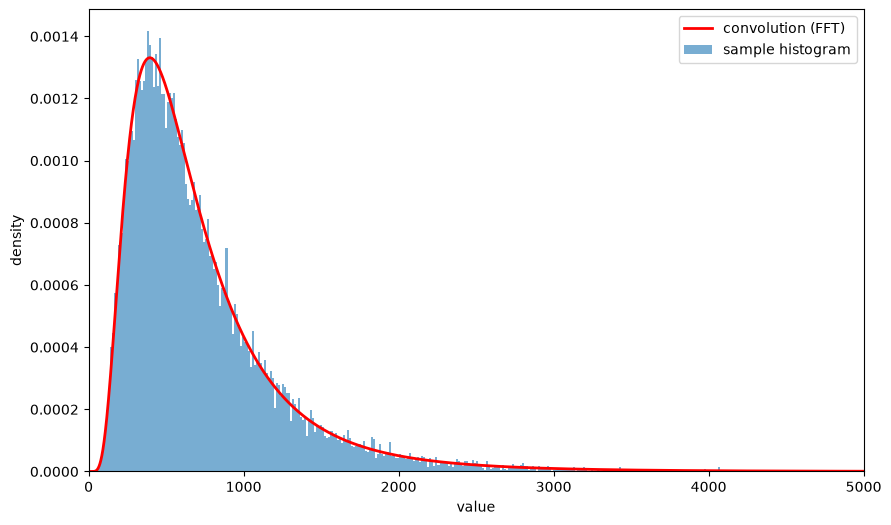

Now we present the plot for the sum of three lognormal random variables:

fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(x, conv_fft[:len(x)] / m, 'r-', lw=2, label='convolution (FFT)')
ax.hist(ssum3, 1000, density=True, alpha=0.6, label='sample histogram')
ax.set_xlim(0, 5000)
ax.set_xlabel('value')
ax.set_ylabel('density')
ax.legend()
plt.show()
_images/03ff033baab59a3803493df70b9756d2bd714ffa2600d36857d28e5cda6422b1.png

Let’s verify that the means are correct

# Mean of sum of two distributions
mean_conv2 = np.sum(x * conv2[:len(x)])
mean_theory2 = 2 * np.exp(μ + 0.5 * σ**2)

print(f"Sum of two distributions:")
print(f"  Theoretical mean: {mean_theory2:.3f}")
print(f"  Computed mean: {mean_conv2:.3f}")

Sum of two distributions:
  Theoretical mean: 489.384
  Computed mean: 489.381

# Mean of sum of three distributions
mean_conv3 = np.sum(x * conv_fft[:len(x)])
mean_theory3 = 3 * np.exp(μ + 0.5 * σ**2)

print(f"Sum of three distributions:")
print(f"  Theoretical mean: {mean_theory3:.3f}")
print(f"  Computed mean: {mean_conv3:.3f}")

Sum of three distributions:
  Theoretical mean: 734.076
  Computed mean: 734.071

14.7. Fault tree analysis#

We shall soon apply the convolution theorem to compute the probability of a top event in a failure tree analysis.

Before applying the convolution theorem, we first describe the model that connects constituent events to the top end whose failure rate we seek to quantify.

Fault tree analysis is a widely used technique for assessing system reliability, as described by El-Shanawany et al. [2018].

To construct the statistical model, we repeatedly use what is called the rare event approximation.

14.7.1. The rare event approximation#

We want to compute the probability of an event \(A \cup B\).

For events \(A\) and \(B\), the probability of the union is

\[ P(A \cup B) = P(A) + P(B) - P(A \cap B) \]

where \(A \cup B\) is the event that \(A\) or \(B\) occurs, and \(A \cap B\) is the event that \(A\) and \(B\) both occur.

If \(A\) and \(B\) are independent, then \(P(A \cap B) = P(A) P(B)\).

When \(P(A)\) and \(P(B)\) are both small, \(P(A) P(B)\) is even smaller.

The rare event approximation is

\[ P(A \cup B) \approx P(A) + P(B) \]

This approximation is widely used in system failure analysis.

14.7.2. System failure probability#

Consider a system with \(n\) critical components where system failure occurs when any component fails.

We assume:

  • The failure probability \(P(A_i)\) of each component \(A_i\) is small

  • Component failures are statistically independent

We repeatedly apply a rare event approximation to obtain the following formula for the problem of a system failure:

\[ P(F) \approx P(A_1) + P (A_2) + \cdots + P (A_n) \]

or

(14.8)#\[P(F) \approx \sum_{i=1}^n P(A_i)\]

where \(P(F)\) is the system failure probability.

Probabilities for each event are recorded as failure rates per year.

14.8. Failure Rates Unknown#

Now we come to the problem that really interests us, following El-Shanawany et al. [2018] and Greenfield and Sargent [1993] in the spirit of Apostolakis [1990].

The component failure rates \(P(A_i)\) are not known precisely and must be estimated.

We address this problem by specifying probabilities of probabilities that capture one notion of not knowing the constituent probabilities that are inputs into a failure tree analysis.

Thus, we assume that a system analyst is uncertain about the failure rates \(P(A_i), i =1, \ldots, n\) for components of a system.

The analyst copes with this situation by regarding the systems failure probability \(P(F)\) and each of the component probabilities \(P(A_i)\) as random variables.

  • dispersions of the probability distribution of \(P(A_i)\) characterizes the analyst’s uncertainty about the failure probability \(P(A_i)\)

  • the dispersion of the implied probability distribution of \(P(F)\) characterizes his uncertainty about the probability of a system’s failure.

This leads to what is sometimes called a hierarchical model in which the analyst has probabilities about the probabilities \(P(A_i)\).

The analyst formalizes his uncertainty by assuming that

  • the failure probability \(P(A_i)\) is itself a log normal random variable with parameters \((\mu_i, \sigma_i)\).

  • failure rates \(P(A_i)\) and \(P(A_j)\) are statistically independent for all pairs with \(i \neq j\).

The analyst calibrates the parameters \((\mu_i, \sigma_i)\) for the failure events \(i = 1, \ldots, n\) by reading reliability studies in engineering papers that have studied historical failure rates of components that are as similar as possible to the components being used in the system under study.

The analyst assumes that such information about the observed dispersion of annual failure rates, or times to failure, can inform him of what to expect about parts’ performances in his system.

The analyst assumes that the random variables \(P(A_i)\) are statistically mutually independent.

The analyst wants to approximate a probability mass function and cumulative distribution function of the systems failure probability \(P(F)\).

  • We say probability mass function because of how we discretize each random variable, as described earlier.

The analyst calculates the probability mass function for the top event \(F\), i.e., a system failure, by repeatedly applying the convolution theorem to compute the probability distribution of a sum of independent log normal random variables, as described in equation (14.8).

14.9. Application: waste hoist failure rate#

We now analyze a real-world example with \(n = 14\) components.

The application estimates the annual failure rate of a critical hoist at a nuclear waste facility.

A regulatory agency requires the system to be designed so that the top event failure rate is small with high probability.

14.9.1. Model specification#

We’ll take close to a real world example by assuming that \(n = 14\).

The example estimates the annual failure rate of a critical hoist at a nuclear waste facility.

A regulatory agency wants the system to be designed in a way that makes the failure rate of the top event small with high probability.

This example is Design Option B-2 (Case I) described in Table 10 on page 27 of Greenfield and Sargent [1993].

The table describes parameters \(\mu_i, \sigma_i\) for fourteen log normal random variables that consist of seven pairs of random variables that are identically and independently distributed.

  • Within a pair, parameters \(\mu_i, \sigma_i\) are the same

  • As described in table 10 of Greenfield and Sargent [1993] p. 27, parameters of log normal distributions for the seven unique probabilities \(P(A_i)\) have been calibrated to be the values in the following Python code:

# Component failure rate parameters
# (see Table 10 of Greenfield & Sargent 1993)
params = [
    (4.28, 1.1947),   # Component type 1
    (3.39, 1.1947),   # Component type 2
    (2.795, 1.1947),  # Component type 3
    (2.717, 1.1947),  # Component type 4
    (2.717, 1.1947),  # Component type 5
    (1.444, 1.4632),  # Component type 6
    (-0.040, 1.4632), # Component type 7 (appears 8 times)
]

Note

Since failure rates are very small, these lognormal distributions actually describe \(P(A_i) \times 10^{-9}\).

So the probabilities that we’ll put on the \(x\) axis of the probability mass function and associated cumulative distribution function should be multiplied by \(10^{-09}\)

We define a helper function to find array indices:

def find_nearest(array, value):
    """
    Find the index of the array element nearest to the given value.
    """
    array = np.asarray(array)
    idx = (np.abs(array - value)).argmin()
    return idx

We compute the required thirteen convolutions in the following code.

(Please feel free to try different values of the power parameter \(p\) that we use to set the number of points in our grid for constructing the probability mass functions that discretize the continuous log normal distributions.)

# Set grid parameters
p = 15
I = 2**p
m = 0.05

# Discretize all component failure rate distributions
# First 6 components use unique parameters, last 8 share the same parameters
component_pmfs = []
for μ, σ in params[:6]:
    _, pmf, x = discretize_lognormal(μ, σ, I, m)
    component_pmfs.append(pmf)

# Add 8 copies of component type 7
μ7, σ7 = params[6]
_, pmf7, x = discretize_lognormal(μ7, σ7, I, m)
component_pmfs.extend([pmf7] * 8)

# Compute system failure distribution via sequential convolution
with qe.Timer() as timer:
    system_pmf = component_pmfs[0]
    for pmf in component_pmfs[1:]:
        system_pmf = fftconvolve(system_pmf, pmf)

print(f"Time for 13 convolutions: {timer.elapsed:.4f} seconds")

8.62 seconds elapsed
Time for 13 convolutions: 8.6250 seconds

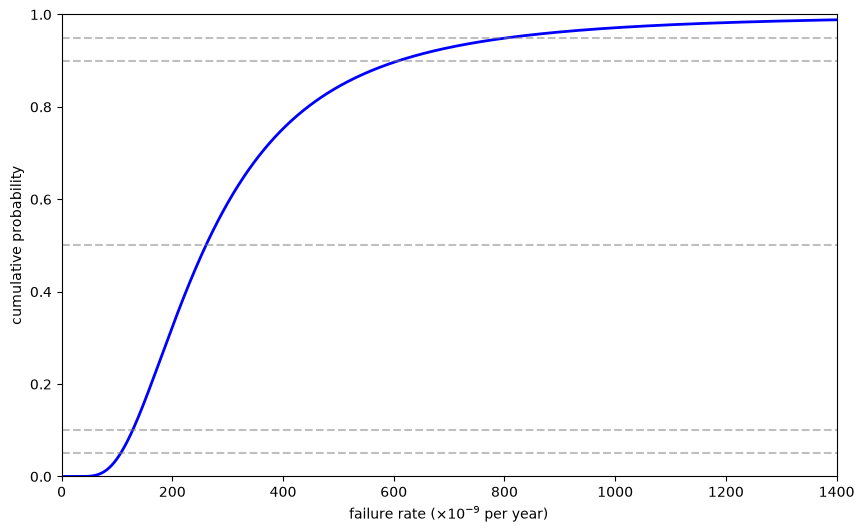

We now plot a counterpart to the cumulative distribution function (CDF) in figure 5 on page 29 of Greenfield and Sargent [1993]

# Compute cumulative distribution function
cdf = np.cumsum(system_pmf)

# Plot CDF
Nx = 1400
fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(x[:int(Nx / m)], cdf[:int(Nx / m)], 'b-', lw=2)

# Add reference lines for key quantiles
quantile_levels = [0.05, 0.10, 0.50, 0.90, 0.95]
for q in quantile_levels:
    ax.axhline(q, color='gray', linestyle='--', alpha=0.5)

ax.set_xlim(0, Nx)
ax.set_ylim(0, 1)
ax.set_xlabel(r'failure rate ($\times 10^{-9}$ per year)')
ax.set_ylabel('cumulative probability')
plt.show()
_images/b425f2a341a59633b5f3768b9baf9d4db2b2e82a89d1601b66b6a7700e84012b.png

We also present a counterpart to their Table 11 on page 28 of Greenfield and Sargent [1993], which lists key quantiles of the system failure rate distribution

# Find quantiles
quantiles = [0.01, 0.05, 0.10, 0.50, 0.665, 0.85, 0.90, 0.95, 0.99, 0.9978]
quantile_values = [x[find_nearest(cdf, q)] for q in quantiles]

# Create table
table_data = [[f"{100*q:.2f}%", f"{val:.3f}"]
              for q, val in zip(quantiles, quantile_values)]

print("\nSystem failure rate quantiles (×10^-9 per year):")
print(tabulate(table_data,
      headers=['Percentile', 'Failure rate'], tablefmt='grid'))

System failure rate quantiles (×10^-9 per year):
+--------------+----------------+
| Percentile   |   Failure rate |
+==============+================+
| 1.00%        |          76.15 |
+--------------+----------------+
| 5.00%        |         106.5  |
+--------------+----------------+
| 10.00%       |         128.2  |
+--------------+----------------+
| 50.00%       |         260.55 |
+--------------+----------------+
| 66.50%       |         338.55 |
+--------------+----------------+
| 85.00%       |         509.4  |
+--------------+----------------+
| 90.00%       |         608.8  |
+--------------+----------------+
| 95.00%       |         807.6  |
+--------------+----------------+
| 99.00%       |        1470.2  |
+--------------+----------------+
| 99.78%       |        2474.85 |
+--------------+----------------+

The computed quantiles agree closely with column 2 of Table 11 on page 28 of [Greenfield and Sargent, 1993].

Minor discrepancies may be due to differences in:

  • Numerical precision of input parameters \(\mu_i, \sigma_i\)

  • Number of grid points in the discretization

  • Grid increment size

14.10. Exercises#

Exercise 14.1

Experiment with different values of the power parameter \(p\) (which determines the grid size as \(I = 2^p\)).

Try \(p \in \{12, 13, 14, 15, 16\}\) and compare:

  1. Computation time

  2. Accuracy of the median (50th percentile) compared to the reference value

  3. Memory usage implications

What trade-offs do you observe?

Exercise 14.2

The rare event approximation assumes that \(P(A_i) P(A_j)\) is negligible compared to \(P(A_i) + P(A_j)\).

Using the computed distribution, calculate the expected value of the system failure rate and compare it to the sum of the expected values of the individual component failure rates.

How good is the rare event approximation in this case?
